5HP Mechanical Repair -- Franklin Electric
Before
After
This 5HP Franklin Electric submersible motor came in with failed bearings and water damage to the windings. We replaced the bearings, rewound the stator with moisture-resistant insulation, and sealed all connections. Full megger and hi-pot testing confirmed the rewind met spec before returning it to the customer.

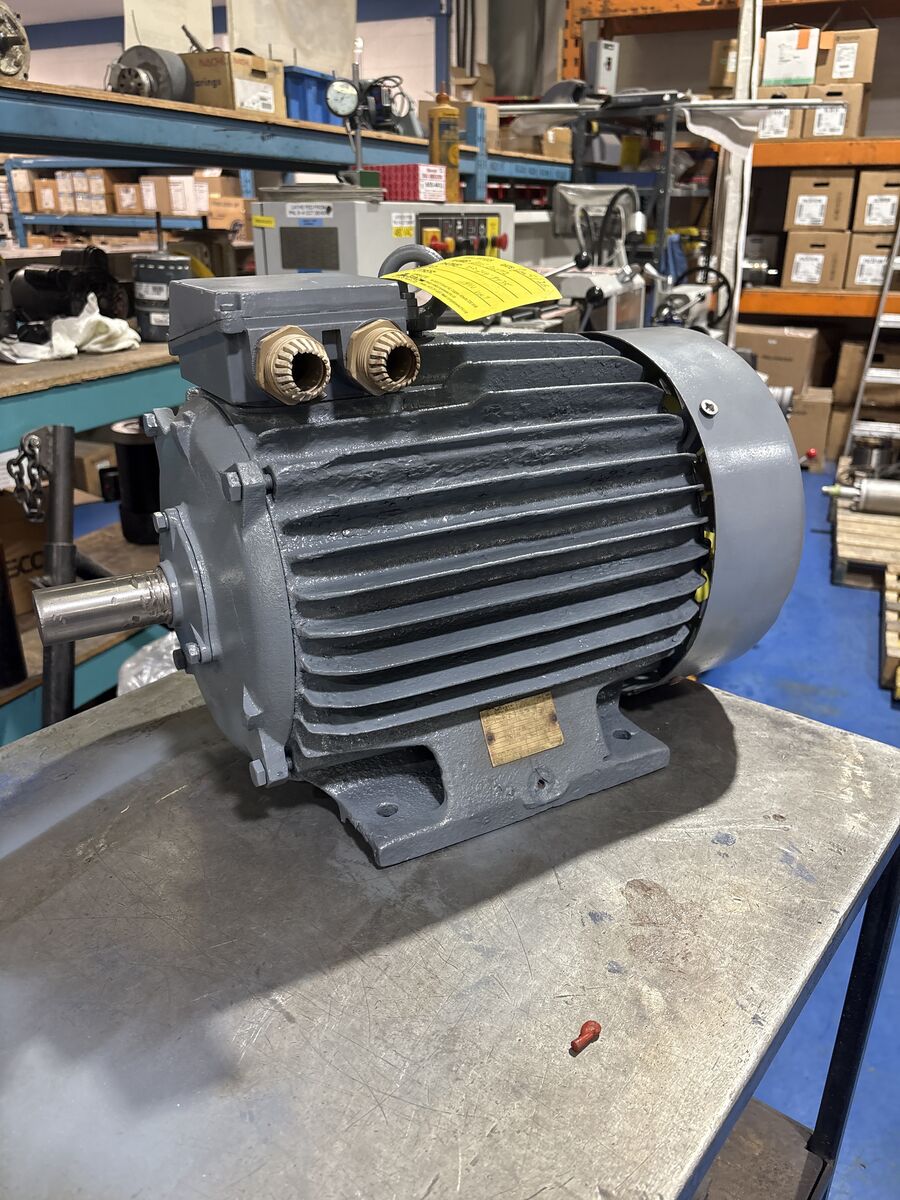

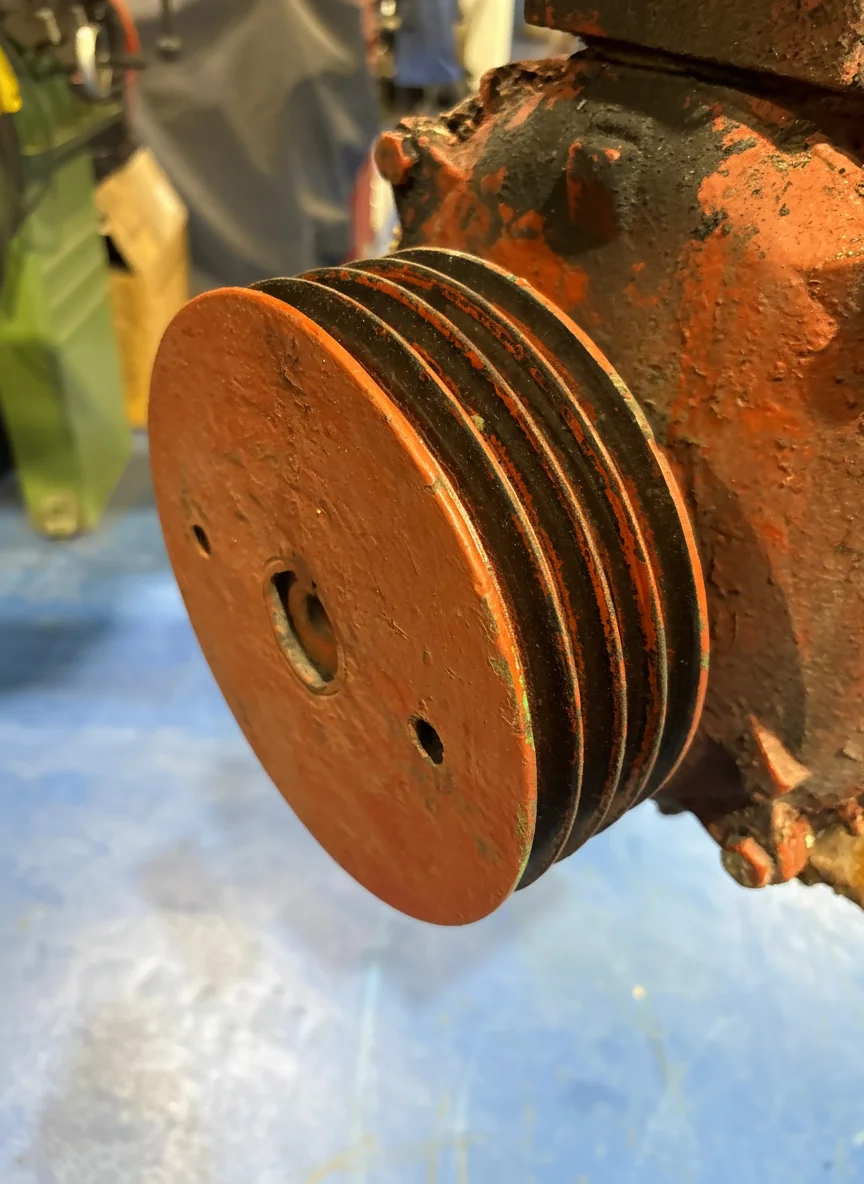

16HP Mechanical Repair
Before
After
A 16HP motor pulled from a production line with severe vibration. Our technicians found a worn bearing and shaft damage. We machined the shaft back to tolerance, pressed new bearings, balanced the rotor, and ran a full load test. The motor went back into service within the week.

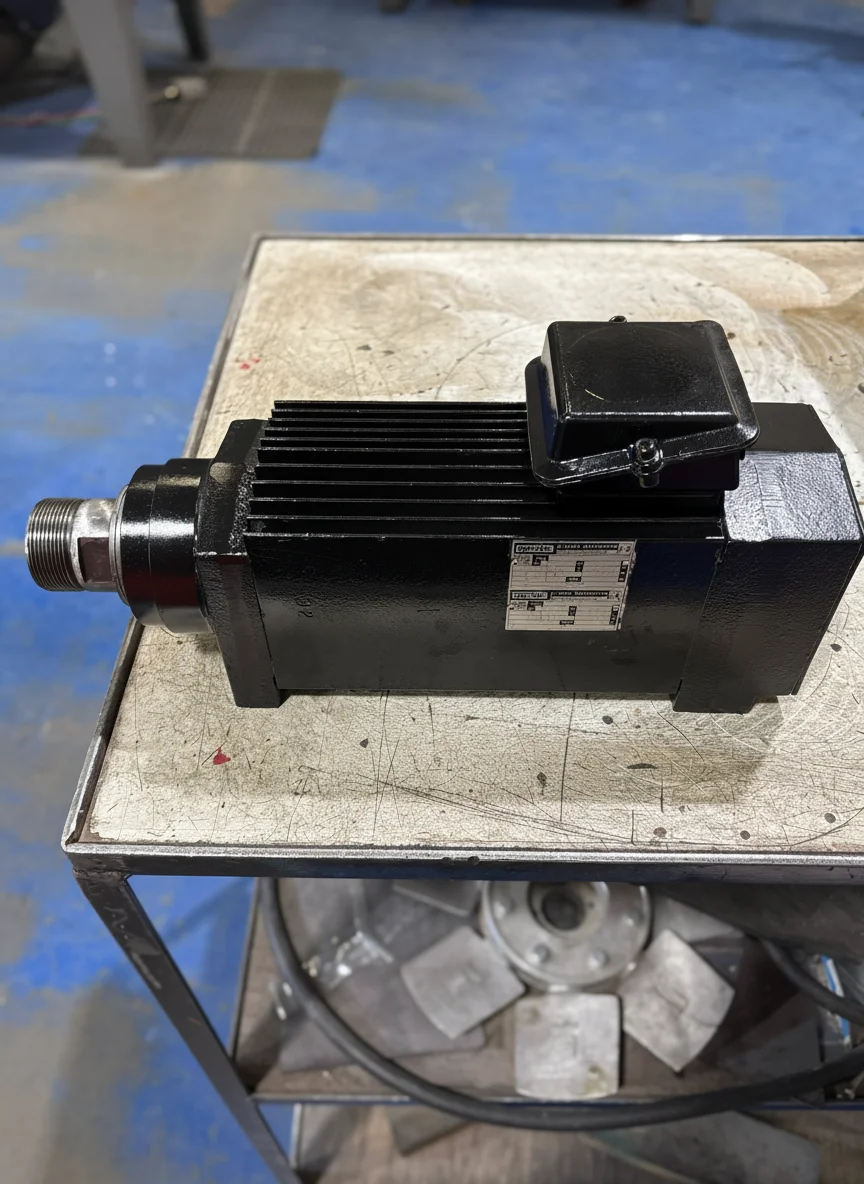

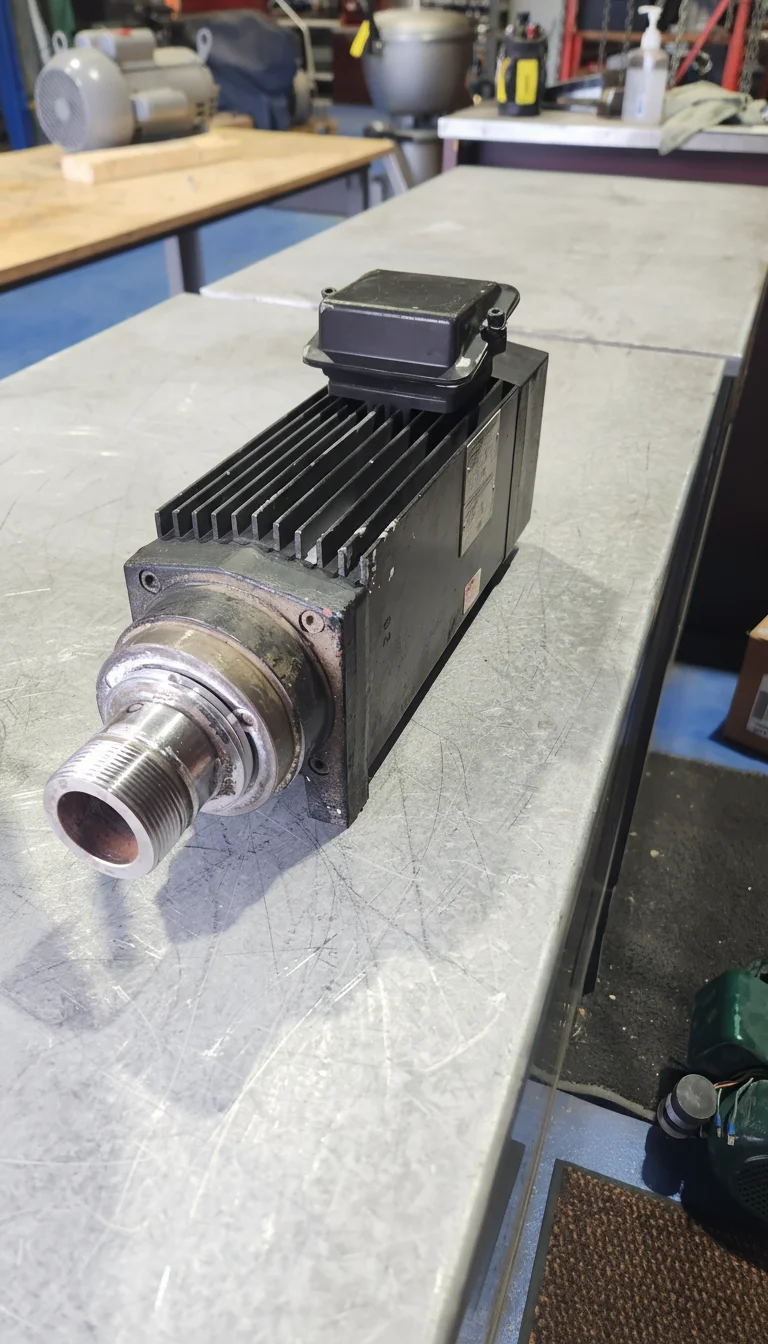

7HP Perske Motor Repair
Before
After
This Perske spindle motor came in from a CNC machine shop with seized bearings and damaged windings. We replaced both bearings, rewound the stator, and performed full vibration and no-load testing. The motor was returned within 5 business days, saving the customer thousands compared to a new Perske replacement.

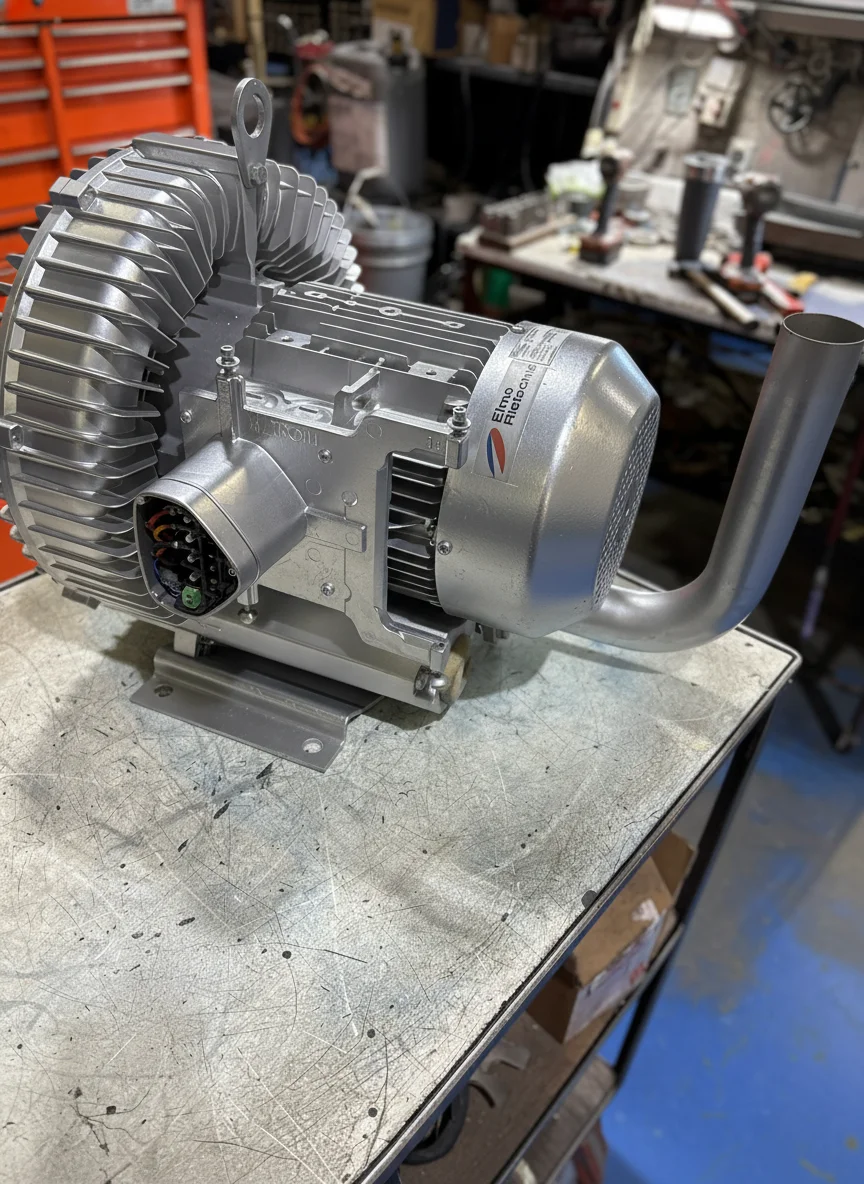

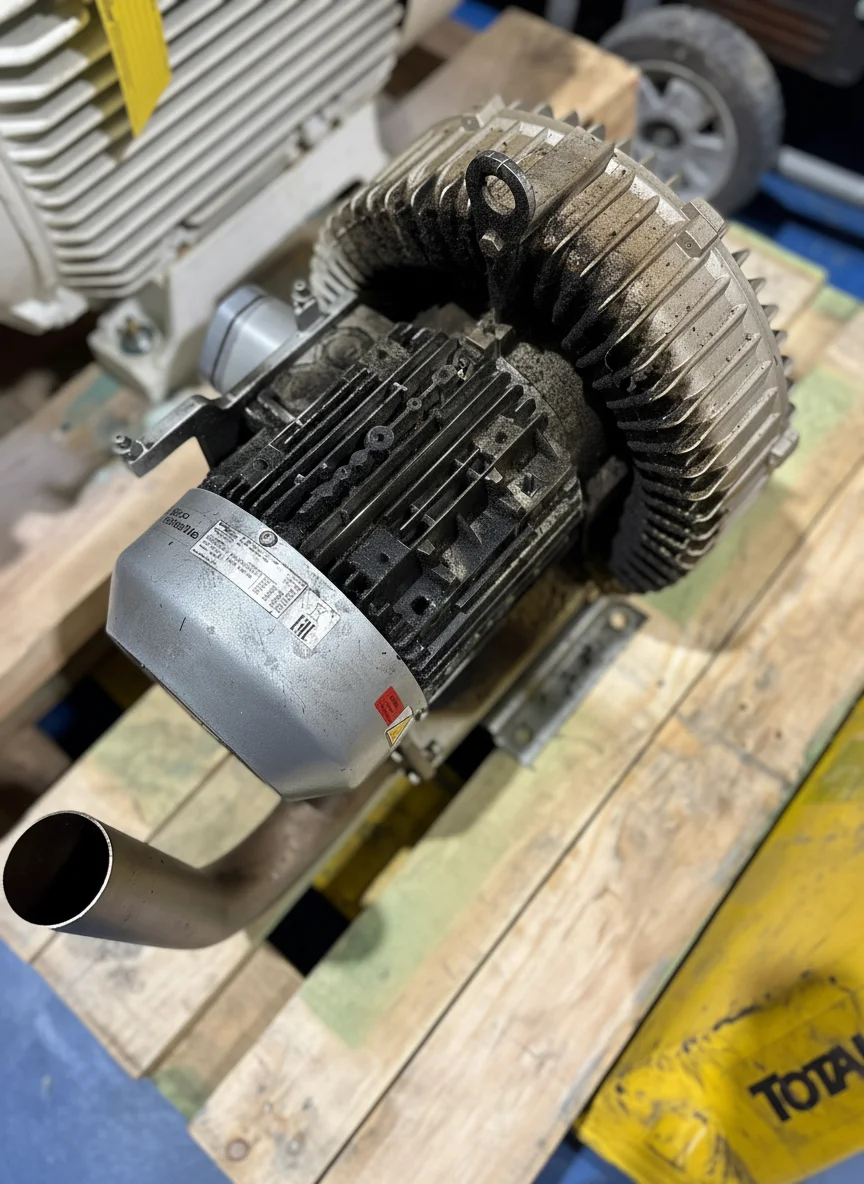

9HP Motor Repair
Before
After
A 9HP motor arrived with excessive vibration and overheating issues. Our technicians diagnosed a bearing failure and insulation breakdown. We replaced the bearings, rewound the motor, varnish-dipped the stator, and ran a full test suite before returning it ready for service.

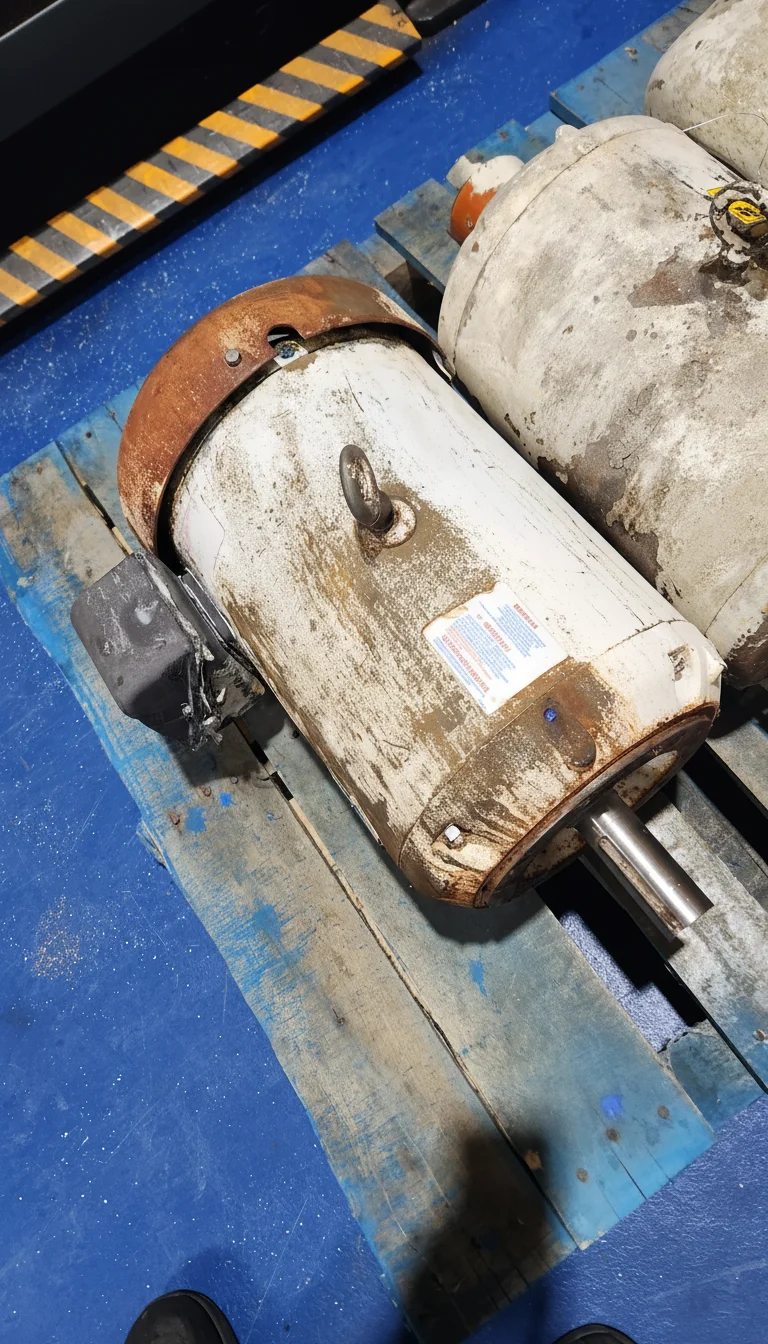

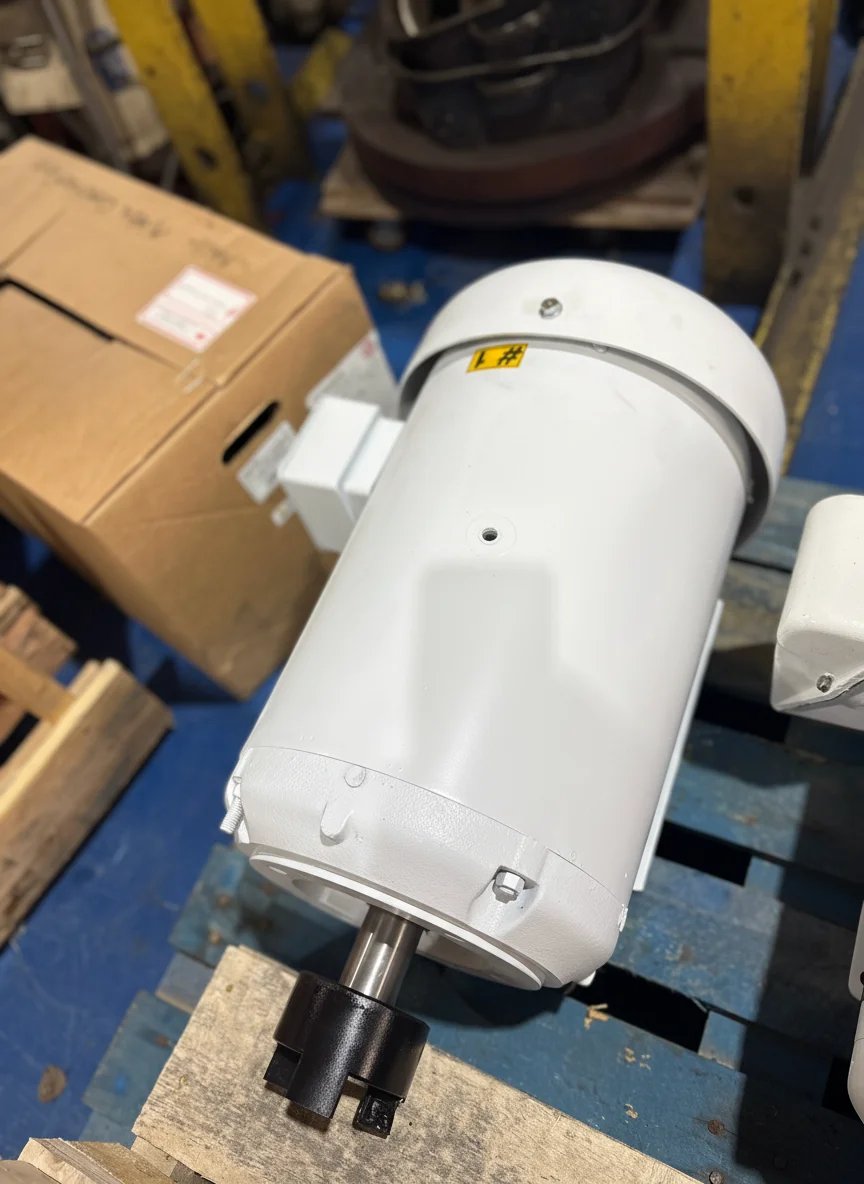

15HP Motor Rewind
Before
After
This 15HP motor had burned windings from a phase imbalance. We stripped the old windings, recorded the winding data, rewound with new copper, VPI-treated the stator, and baked it to cure. Final hi-pot and surge testing confirmed the rewind met OEM specifications.

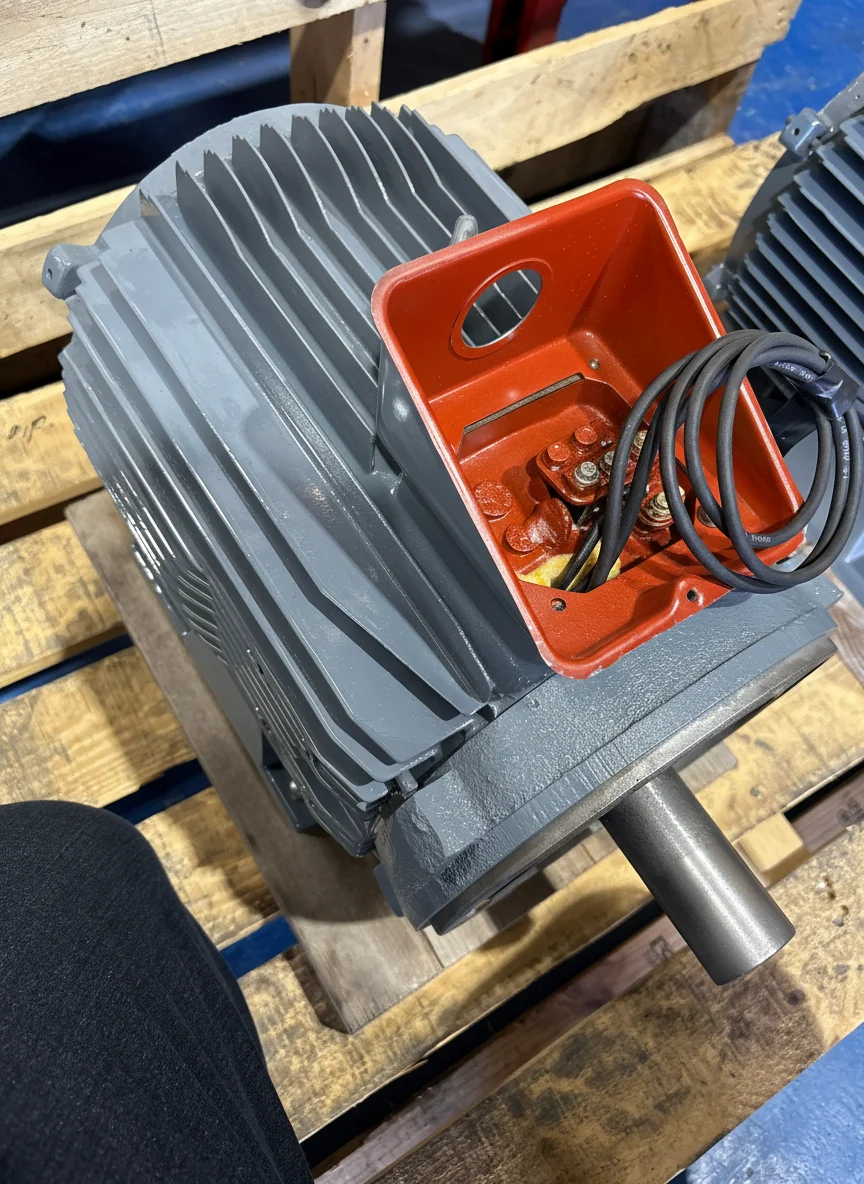

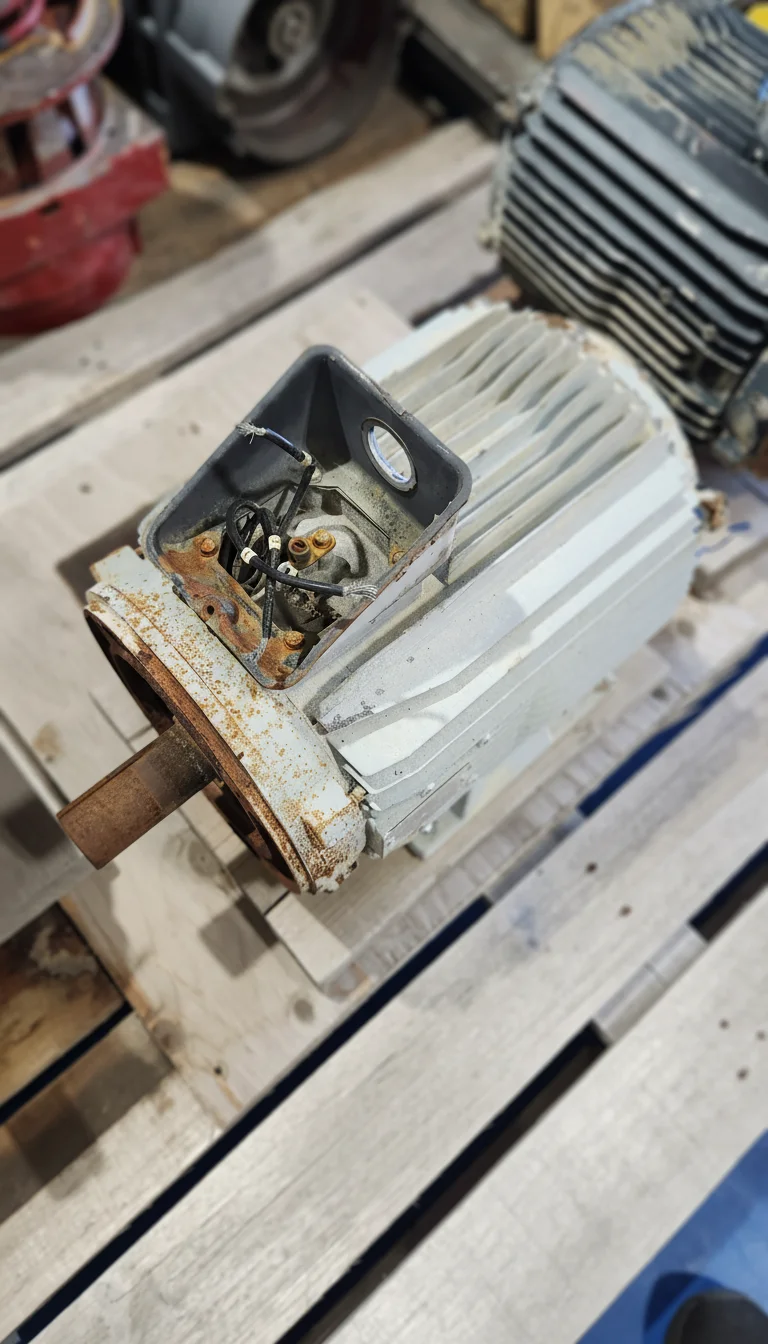

10HP Motor Rewind
Before
After
A 10HP motor came in for a planned rewind after insulation testing showed degraded winding resistance. We performed a complete strip and rewind with class F insulation, VPI treatment, and comprehensive testing. Turnaround was under two weeks.
